uvi-script
Musical event scripting with Lua
ParamWidget Class Reference

base class for ParamWidget. More...

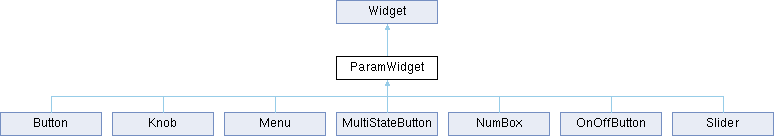

Inheritance diagram for ParamWidget:
Widget Knob Menu MultiStateButton NumBox OnOffButton Slider

Public Attributes

Mapper::Type mapper
 Mapper type, default is Mapper.Linear.

Unit::Type unit
 Unit type, default is Unit.Generic.

int paramId
 parameter id, assigned automatically (read-only)

bool exported
 default: false, set it to true to export this parameter as an automatable parameter

- Public Attributes inherited from Widget
string name
 widget name, given at construction (read-only)

string displayName
 widget display name

string displayText
 custom text to display in place of the standard value display, on widgets that show one.

string tooltip
 widget tooltip, default is name

int x
 x position in pixels

int y
 y position in pixels

int width
 widget width in pixels

int height
 widget height in pixels

int w
 alias of width

int h
 alias of height

table size
 widget size {width, height}

table position
 widget position {x,y}

table pos
 alias of position

table bounds
 widget bounding rect {x,y,width,height}

number alpha
 transparency value between 0.0 and 1.0

bool enabled
 boolean flag to enable / disable the widget

bool visible
 boolean flag to toggle widget visibility

bool interceptsMouseClicks
 boolean flag to toggle mouse handling on widget.

bool showLabel
 show widgets label if any

bool persistent
 flag to tell if the widget values should be serialized when saving.

function changed
 callback function used by child widgets to be notified of changes.


Detailed Description

base class for ParamWidget.
